Spring washer
Size:M3-M60
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details

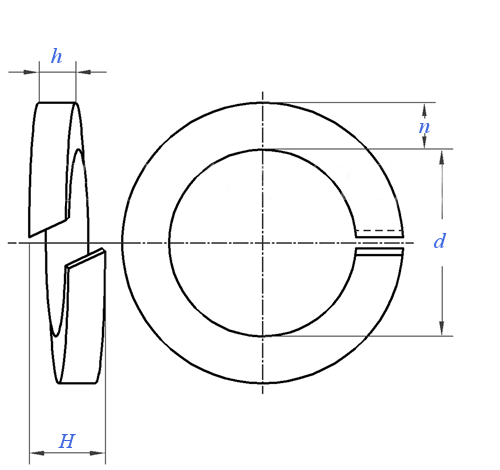

Nominal Diameter Φ2 Φ2.2 Φ2.5 Φ3 Φ3.5 Φ4 Φ5 Φ6 Φ7 Φ8 Φ10 Φ12 d min 2.1 2.3 2.6 3.1 3.6 4.1 5.1 6.1 7.1 8.1 10.2 12.2 max 2.4 2.6 2.9 3.4 3.9 4.4 5.4 6.5 7.5 8.5 10.7 12.7 n Nominal Size 0.9 1 1 1.3 1.3 1.5 1.8 2.5 2.5 3 3.5 4 max 1 1.1 1.1 1.4 1.4 1.6 1.9 2.65 2.65 3.15 3.7 4.2 min 0.8 0.9 0.9 1.2 1.2 1.4 1.7 2.35 2.35 2.85 3.3 3.8 h Nominal Size 0.5 0.6 0.6 0.8 0.8 0.9 1.2 1.6 1.6 2 2.2 2.5 max 0.6 0.7 0.7 0.9 0.9 1 1.3 1.7 1.7 2.1 2.35 2.65 min 0.4 0.5 0.5 0.7 0.7 0.8 1.1 1.5 1.5 1.9 2.05 2.35 H min 1 1.2 1.2 1.6 1.6 1.8 2.4 3.2 3.2 4 4.4 5 max 1.2 1.4 1.4 1.9 1.9 2.1 2.8 3.8 3.8 4.7 5.2 5.9 per 1000 units ≈ kg 0.033 0.05 0.053 0.11 0.12 0.18 0.36 0.83 0.93 1.6 2.53 3.82 Nominal Diameter Φ14 Φ16 Φ18 Φ20 Φ22 Φ24 Φ27 Φ30 Φ36 Φ39 Φ42 Φ45 d min 14.2 16.2 18.2 20.2 22.5 24.5 27.5 30.5 36.5 39.5 42.5 45.5 max 14.7 17 19 21.2 23.5 25.5 28.5 31.7 37.7 40.7 43.7 46.7 n Nominal Size 4.5 5 5 6 6 7 7 8 10 10 12 12 max 4.7 5.2 5.2 6.2 6.2 7.25 7.25 8.25 10.25 10.25 12.25 12.25 min 4.3 4.8 4.8 5.8 5.8 6.75 6.75 7.75 9.75 9.75 11.75 11.75 h Nominal Size 3 3.5 3.5 4 4 5 5 6 6 6 7 7 max 3.15 3.7 3.7 4.2 4.2 5.2 5.2 6.2 6.2 6.2 7.25 7.25 min 2.85 3.3 3.3 3.8 3.8 4.8 4.8 5.8 5.8 5.8 6.75 6.75 H min 6 7 7 8 8 10 10 12 12 12 14 14 max 7.1 8.3 8.3 9.4 9.4 11.8 11.8 14.2 14.2 14.2 16.5 16.5 per 1000 units ≈ kg 6.01 8.91 9.73 15.2 16.5 26.2 28.7 44.3 67.3 71.7 111 117 Nominal Diameter Φ48 Φ52 Φ56 Φ60 Φ64 Φ68 Φ72 Φ80 Φ90 Φ100 d min 49 53 57 61 65 69 73 81 91 101 max 50.5 54.5 58.5 62.5 66.5 70.5 74.5 82.5 92.5 102.5 n Nominal Size 12 14 14 14 14 14 14 14 14 14 max 12.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 14.25 min 11.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 13.75 h Nominal Size 7 8 8 8 8 8 8 8 8 8 max 7.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 8.25 min 6.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 7.75 H min 14 16 16 16 16 16 16 16 16 16 max 16.5 18.9 18.9 18.9 18.9 18.9 18.9 18.9 18.9 18.9 per 1000 units ≈ kg 123 182 193 203 218 228 240 262 290 318 Size:M3-M60
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI
Spring washer
Size:M3-M60
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI
MOQ: 1000PCS
Still deciding? Get samples first, Contact US !
