Cap nut
Grade 4 5 6 8 10 12
Size:M4-M36
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Size:M4-M36
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Still deciding? Get samples first, Contact US !
- Product Description
-
Product details
Thread Size

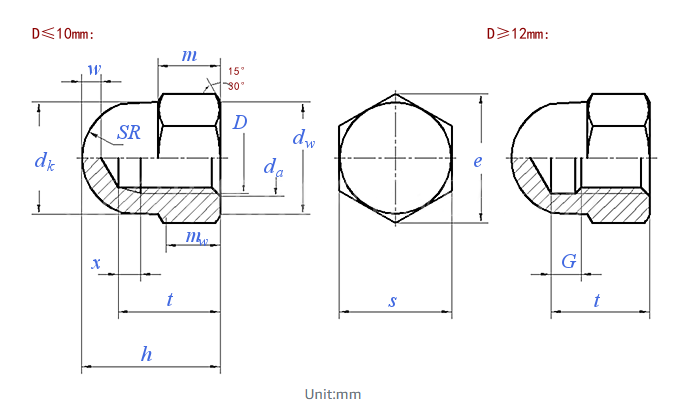

DM4 M5 M6 M8 M10 M12 (M14) M16 (M18) M20 (M22) M24 P Seriers 1 Coarse thread 0.7 0.8 1 1.25 1.5 1.75 2 2 2.5 2.5 2.5 3 Seriers 2 Fine thread / / / 1 1 1.5 1.5 1.5 1.5 2 1.5 2 Seriers 3 Fine thread / / / / 1.25 1.25 / / 2 1.5 2 / da max 4.6 5.75 6.75 8.75 10.8 13 15.1 17.3 19.5 21.6 23.7 25.9 min 4 5 6 8 10 12 14 16 18 20 22 24 dk min=nominal size 6.5 7.5 9.5 12.5 15 17 20 23 26 28 33 34 dw min 5.9 6.9 8.9 11.6 14.6 16.6 19.6 22.5 24.9 27.7 31.4 33.3 e Grade A min 7.66 8.79 11.05 14.38 17.77 20.03 23.35 26.75 30.14 33.53 37.72 39.98 Grade B min 7.5 8.63 10.89 14.2 17.59 19.85 22.78 26.17 29.56 32.95 37.29 39.55 x Seriers 1 max 1.4 1.6 2 2.5 3 3.5 4 4 5 5 5 6 Seriers 2 max / / / 2 2 3 3 3 3 4 3 4 Seriers 3 max / / / / 2.5 2.5 / / 4 3 4 / G Seriers 1 / / / / / 6.4 7.3 7.3 9.3 9.3 9.3 10.7 Seriers 2 / / / / / 5.6 5.6 5.6 5.6 7.3 5.6 7.3 Seriers 3 / / / / / 4.9 / / 7.3 5.6 7.3 / h max=nominal size 8 10 12 15 18 22 25 28 32 34 39 42 Grade A min 7.64 9.64 11.57 14.57 17.57 21.48 24.48 27.48 31.38 33.38 38.38 41.38 Grade B min 7.42 9.42 11.3 14.3 17.3 21.16 24.16 27.16 31 33 38 41 m max 3.2 4 5 6.5 8 10 11 13 15 16 18 19 min 2.9 3.7 4.7 6.14 7.64 9.64 10.3 12.3 14.3 14.9 16.9 17.7 mw min 2.32 2.96 3.76 4.91 6.11 7.71 8.24 9.84 11.44 11.92 13.52 14.16 SR ≈ 3.25 3.75 4.75 6.25 7.5 8.5 10 11.5 13 14 16.5 17 s max 7 8 10 13 16 18 21 24 27 30 34 36 Grade A min（Grade A） 6.78 7.78 9.78 12.73 15.73 17.73 20.67 23.67 26.67 29.67 33.38 35.38 Grade B min（Grade B） 6.64 7.64 9.64 12.57 15.57 17.57 20.16 23.16 26.16 29.16 33 35 t max 5.74 7.79 8.29 11.35 13.35 16.35 18.35 21.42 25.42 26.42 29.42 31.5 min 5.26 7.21 7.71 10.65 12.65 15.65 17.65 20.58 24.58 25.58 28.58 30.5 w min 2 2 2 2 2 3 4 4 5 5 5 6 per 1000 units≈kg / / 4.66 11 20.1 28.3 / 54.3 95 104 / 216 Grade 4 5 6 8 10 12
