Sleeve anchor

Size:M6- M30
Length:50-500mm
Surface: YZP,HDG
Material:Carbon Steel/Stainless Steel

Email:

sales01@lqfastener.com

WhatsApp:

+86 15512705826

Inquire Now

Product details

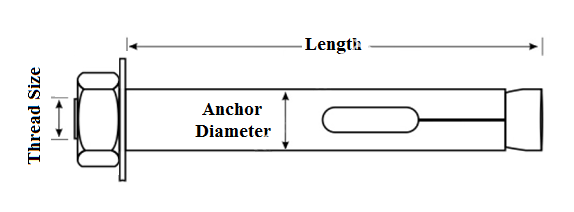

Thread Size	M5	M6	M8	M10	M12	M16
Drill Hole Diameter	6MM	8MM	10MM	12MM	16MM	20MM
Anchor Diameter	6MM	8MM	10MM	12MM	16MM	20MM
Length	25MM 40MM 50MM	40MM 50MM 60MM 65MM 80MM 90MM	40MM 50MM 60MM 70MM 75MM 100MM	60MM 75MM 100MM 120MM	65MM 110MM 150MM	100MM

Size:M6- M30

Length:50-500mm

Surface: YZP,HDG

Material:Carbon Steel/Stainless Steel

Sleeve anchor, also known as expansion anchor or wedge anchor, is a type of fastener used to secure objects to concrete, brick or block. The sleeve anchor consists of a steel bolt threaded at one end with a steel sleeve and a nut at the other end.

To install a sleeve anchor, a hole is drilled into the base material and the anchor is inserted into the hole. As the nut is tightened, the sleeve expands and wedges itself against the walls of the hole, creating a secure connection. Sleeve anchors are commonly used in applications where high load capacities are required, such as in construction, electrical and plumbing installations.

With a length of 200mm, sleeve anchors are suitable for medium to heavy-duty applications. They are available in various diameters and lengths to accommodate different thicknesses of base materials. It is important to follow the manufacturer's instructions when using sleeve anchors to ensure proper installation and maximum holding capacity.
