Double end studs

Size:M6-M64
Length:10-600mm
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI

Email:

sales01@lqfastener.com

WhatsApp:

+86 15512705826

Inquire Now

Product details

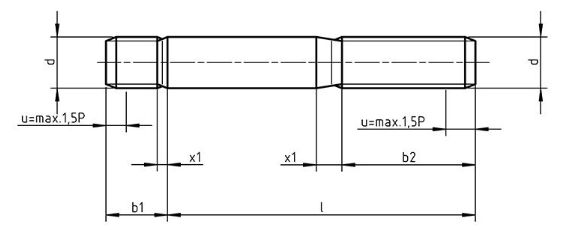

M4 to M20 Technical Data
Thread Diameter (d)	M4	M5	M6	M7	M8	M10	M12	M14	M16	M18	M20
b1 (mm)	5	6.5	7.5	9	10	12	15	18	20	22	25
b2 l<125 (mm)	14	16	18	20	22	26	30	34	38	42	46
b2 125>l<200 (mm)	20	22	24	26	28	32	36	40	44	48	52
b2 l>200 (mm)	–	–	–	–	–	45	49	53	57	61	65
x1 (mm)	1.75	2	2.5	2.5	3.2	3.8	4.3	5	5	6.3	6.3
x2 (mm)	0.9	1	1.25	1.25	1.6	1.9	2.2	2.5	3.2	3.2	3.2

M22 to M52 Technical Data
Thread Diameter (d)	M22	M24	M27	M30	M33	M36	M39	M42	M45	M48	M52
b1 (mm)	28	30	35	38	42	45	50	52	58	60	65
b2 l<125 (mm)	50	54	60	66	72	78	84	90	96	102	110
b2 125>l<200 (mm)	56	60	66	72	78	84	90	96	102	108	116
b2 l>200 (mm)	69	73	79	85	91	97	103	109	115	121	129
x1 (mm)	6.3	7.5	7.5	9	9	10	10	11	11	12.5	12.5
x2 (mm)	3.2	3.8	3.8	4.5	4.5	5	5	5.5	5.5	6.3	6.3

Size:M6-M64

Length:10-600mm

Surface: Plain,Black,YZP,ZP,HDG

Material: Carbon steel/Stainless steel

Standard:DIN BSW ANSI

Double end studs are specialized fasteners that have threads on both ends. They are typically used in applications where two components need to be fastened together with a single fastener. This can help to simplify assembly and reduce the need for multiple fasteners.

The double end studs are available in various lengths and sizes, with the most common being 2 inches long. They are made from high-quality materials such as stainless steel or carbon steel, ensuring durability and strength.

These studs are ideal for use in industries such as automotive, construction, and manufacturing. They are commonly used in engine assemblies, structural steel connections, and machinery parts.

When installing double end studs, it is crucial to ensure that they are tightened securely using the appropriate tools. This will help prevent any loosening or failure of the fastener.

Overall, double end studs are a versatile and reliable fastening solution for a wide range of applications, providing strength and stability where it is needed.
