Threaded rod thread bar

Size:M3-M60
Length:1MTR-6MTR
Surface: Plain,Black,YZP,ZP,HDG
Material: Carbon steel/Stainless steel
Standard:DIN BSW ANSI

Email:

sales01@lqfastener.com

WhatsApp:

+86 15512705826

Inquire Now

Product details

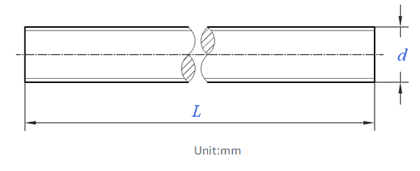

Thread Size d		M2	M2.5	M3	(M3.5)	M4	M5	M6	M8	M10	M12	(M14)	M16	(M18)
P	Coarse Thread Pitch	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
	Fine Thread Pitch	/	/	/	/	/	/	/	1	1.25	1.25	1.5	1.5	1.5
	Fine Thread Pitch	/	/	/	/	/	/	/	/	1	1.5	/	/	/
L	±10	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
per 1000 units ≈ kg		18.7	30	44	60	78	124	177	319	500	725	970	1330	1650

Thread Size d		M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
P	Coarse Thread Pitch	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
	Fine Thread Pitch	1.5	1.5	2	2	2	2	3	3	3	3	3	3
	Fine Thread Pitch	/	/	/	/	/	/	/	/	/	/	/	/
L	±10	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
per 1000 units ≈ kg		2080	2540	3000	3850	4750	5900	6900	8200	9400	11000	12400	14700

Size:M3-M60

Length:1MTR-6MTR

Surface: Plain,Black,YZP,ZP,HDG

Material: Carbon steel/Stainless steel

Standard:DIN BSW ANSI

Metric: Dia M3 - M64 & Lengths 600mm - 3.6m

Imperial: Dia 1/8" - 1-1/2" & Lengths 3ft - 12ft

Threads: Metric Coarse/Fine & Imperial BSW, UNC, UNF, SAE, ACME, BSF

Strength: Property Class 4.6, 8.8, 10.9 & Grade 2, 5, 8, & A2-70, A4-70

Material/Finish: Plain, Zinc Plated, Zinc Yellow, Hot Dip Galvanised & G304/G316 Stainless Steel

Compliance: DIN 975, AS 3501, AS 2451, IFI 136C

Diameter：M10

Length：2000mm

Material：Mild Steel

Finish：Galvanised

Thread Pitch：1.5 P

Standard：DIN 976

A threaded rod, also known as a thread bar, is a long, straight rod with threads running along its entire length. These threads allow nuts or other threaded components to be easily attached, making it a versatile and useful piece of hardware. Threaded rods are commonly used in construction, plumbing, and manufacturing industries for a variety of applications.

One of the key advantages of threaded rods is their ability to be easily cut to custom lengths, allowing for a precise fit in a wide range of projects. They can also be easily installed and removed, making them ideal for temporary or adjustable applications. Threaded rods are available in a variety of materials, including steel, stainless steel, and brass, each offering different levels of strength and corrosion resistance.

Overall, threaded rods are a simple yet effective solution for fastening and securing components in a wide range of applications. Their versatility, durability, and ease of use make them a go-to choice for many professionals and DIY enthusiasts alike.
