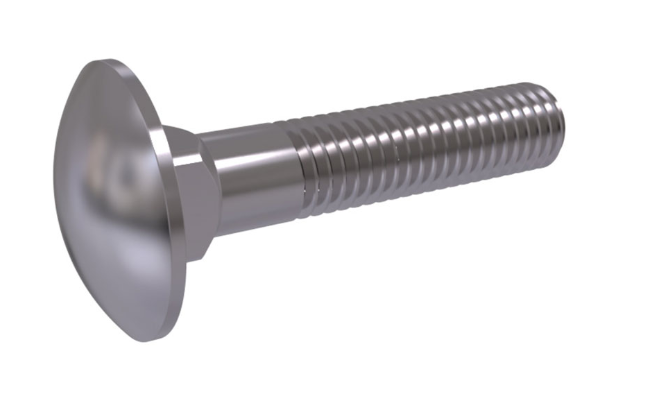

Square neck carriage bolt DIN603
Material:Carbon Steel,A2 and A4
Grade:5 5.8 6 6.8 8.8 10.9 12.9
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details
DIN 603 - Mushroom head square neck bolts
Current norm: DIN 603
Equivalent norms: ISO 8677; CSN 021319; PN 82406; UNI 5731;

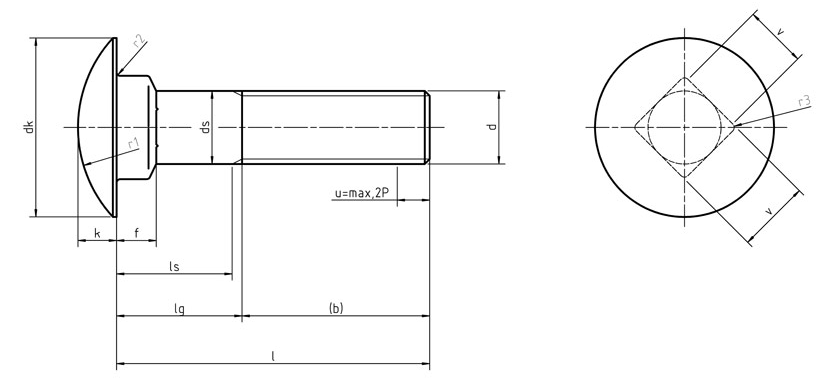

Legend:
b - length of the thread (at least)
l - length of bolt
d - the nominal diameter of the thread
k - head height
ds - diameter of the screw shank
dk - head diameter
f - height squared
v - width of the square
r1 - Head radius
lg - length of the shank to thread

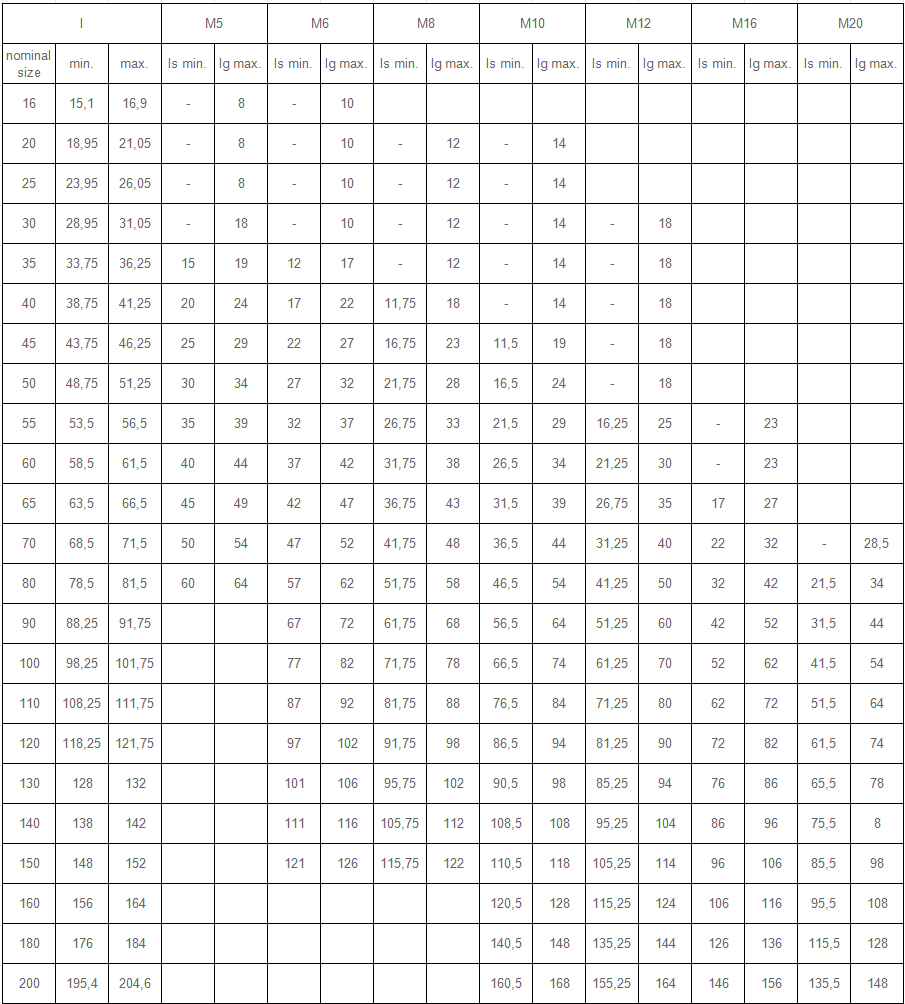

ls - length of the shank to the start of the threadMakings:
Steel: 4.6,8.8
Stainless: A2, A4
Plastic: -
Non Ferrous: -
Thread: 6gdimensions in mm

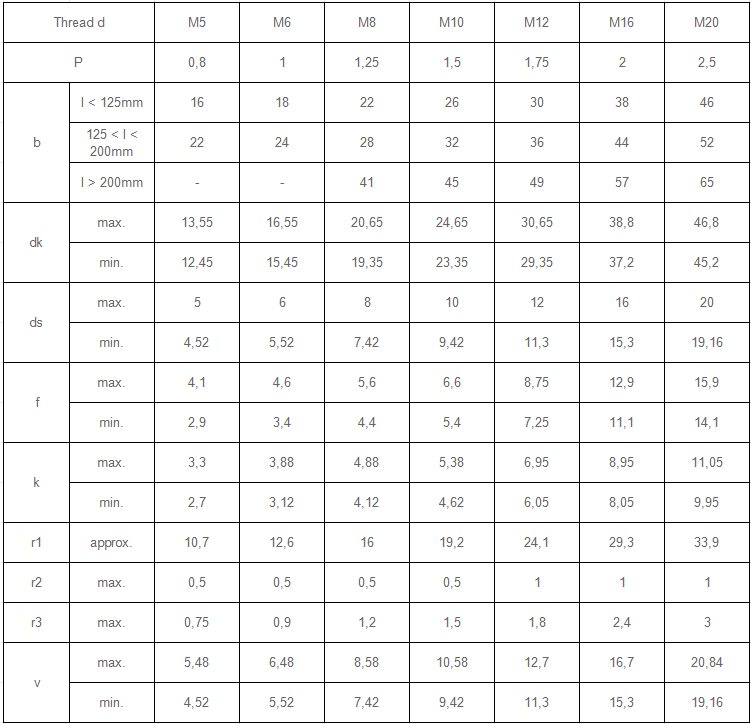

Tab 2.
Surface Treatment:ZINC PLATED, Black Oxide, galvanized, passivated, Zinc-Flake Coated, Chrome Plated, Nickel Plated, Cadmium Plated, Blue Phosphate,
Polished, Waxed, Zinc and Wax, Zinc Yellow-Chromate PlatedMeasurement:Metric,Imperial
Application:Heavy Industry, Mining, Water Treatment, Healthcare, Retail Industry, Food & Beverage, General Industry, Oil & Gas, Building
Material:Carbon Steel,A2 and A4
Grade:5 5.8 6 6.8 8.8 10.9 12.9
Standard:DIN,ANSI Customized
Sample:Available
MOQ:1000 PCS
Packing:Standard Exporting bag+pallet or according to request
Certificate:FORM-E,CO,ISO,MTC
Size:M6-M37
Length:20mm-300mm
ODM:Acceptable
Square neck carriage bolt DIN603
Material:Carbon Steel,A2 and A4
Grade:5 5.8 6 6.8 8.8 10.9 12.9
MOQ: 1000PCS
