Serrated Flange nut DIN6923
Grade 4 5 6 8 10 12
Size:M3-M39
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Size:M3-M39
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details
Unit:mm

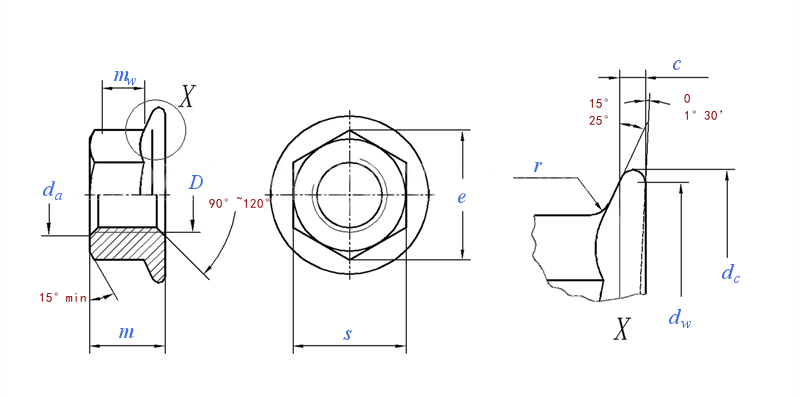

Thread Size
DM5 M6 M8 M10 M14 M16 M20 P Pitch Coarse thread 0.8 1 1.25 1.5 2 2 2.5 Fine thread 1 / / 1 1.25 1.5 1.5 1.5 Fine thread 2 / / / -1 / / / c min 1 1.1 1.2 1.5 2.1 2.4 3 da min 5 6 8 10 14 16 20 max 5.75 6.75 8.75 10.8 15.1 17.3 21.6 dc max 11.8 14.2 17.9 21.8 29.9 34.5 42.8 dw min 9.8 12.2 15.8 19.6 27.6 31.9 39.9 e min 8.79 11.05 14.38 16.64 23.36 26.75 32.95 m max 5 6 8 10 14 16 20 min 4.7 5.7 7.6 9.6 13.3 15.3 18.9 mw min 2.2 3.1 4.5 5.5 7.8 9 11.1 s max=nominal size 8 10 13 15 21 24 30 min 7.78 9.78 12.73 14.73 20.67 23.67 29.67 r max 0.3 0.36 0.48 0.6 0.88 0.96 1.2 Grade 4 5 6 8 10 12
Size:M3-M39
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Serrated Flange nut DIN6923
Grade 4 5 6 8 10 12
Size:M3-M39
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
Size:M3-M39
Standard:DIN BS ASME ASTM NF UNI JIS GB
Surface: Plain,Black,YZP,ZP,HDG
MOQ: 1000PCS
