Cup head hex socket bolt grade 12.9
Grade 4.8 5.8 6.8 8.8 10.9 12.9
Thread: Half/Full
Size:M6-M20
Surface: Plain,Black,YZP,ZP,HDG
Standard: GB,ANSI,BSW or Customized
Thread: Half/Full
Size:M6-M20
Surface: Plain,Black,YZP,ZP,HDG
Standard: GB,ANSI,BSW or Customized
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details

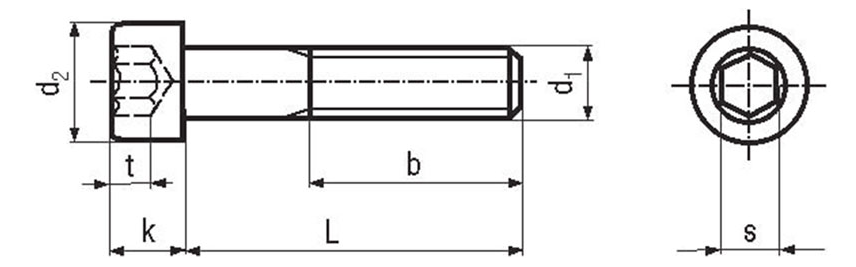

DIN 912 Socket Head Cap Screw Dimensions
Size (d1) Thread Pitch Head Diameter (d2) Head Height (k) Key Size (s) Key Engagement (t) Min Max Min Max Min Max Nominal M1.4 0.3 2.46 2.74 1.26 1.4 1.32 1.36 0.6 M1.6 0.35 2.86 3.14 1.46 1.6 1.52 1.56 0.7 M2 0.4 3.62 3.98 1.86 2 1.52 1.56 1 M2.5 0.45 4.32 4.68 2.36 2.5 2.02 2.06 1.1 M3 0.5 5.32 5.68 2.86 3 2.52 2.58 1.3 M4 0.7 6.78 7.22 3.82 4 3.02 3.08 2 M5 0.8 8.28 8.72 4.82 5 4.02 4.095 2.5 M6 1 9.78 10.22 5.7 6 5.02 5.14 3 M8 1.25 12.73 13.27 7.64 8 6.02 6.14 4 M10 1.5 15.73 16.27 9.64 10 8.025 8.175 5 M12 1.75 17.73 18.27 11.57 12 10.025 10.175 6 M14 2 20.67 21.33 13.57 14 12.032 12.212 7 M16 2 23.67 24.33 15.57 16 14.032 14.212 8 M18 2.5 26.67 27.33 17.57 18 14.032 14.212 9 M20 2.5 29.67 30.33 19.48 20 17.05 17.23 10 M22 2.5 32.61 33.39 21.48 22 17.05 17.23 11 M24 3 35.61 36.39 23.48 24 19.05 19.275 12 M27 3 39.61 40.39 26.48 27 19.065 19.275 13.5 M30 3.5 44.61 45.39 29.48 30 22.065 22.275 15.5 M33 3.5 49.61 50.39 32.38 33 24.065 24.275 18 M36 4 53.54 54.56 35.38 36 27.065 27.275 19 M39 4 57.54 58.46 38.38 39 27.065 27.275 22 M42 4.5 62.54 63.46 41.38 42 32.08 32.33 24 M45 4.5 66.54 67.46 44.38 45 32.08 32.33 24 M48 5 71.54 72.46 47.38 48 36.08 36.33 28 M56 5.5 93.46 84.54 55.26 56 41.08 41.33 34 M64 6 95.46 96.54 63.26 64 46.08 46.33 38 M72 6 107.46 108.54 71.26 72 55.1 55.4 43 M80 6 119.46 120.54 79.26 80 65.1 65.4 48 M90 6 134.37 135.63 89.13 90 75.1 75.4 54 M100 6 149.37 150.63 99.13 100 85.12 85.47 60 Grade 4.8 5.8 6.8 8.8 10.9 12.9
Thread: Half/Full
Size:M6-M20
Surface: Plain,Black,YZP,ZP,HDG
Standard: GB,ANSI,BSW or Customized
Cup head hex socket bolt grade 12.9
Grade 4.8 5.8 6.8 8.8 10.9 12.9
Thread: Half/Full
Size:M6-M20
Surface: Plain,Black,YZP,ZP,HDG
Standard: GB,ANSI,BSW or Customized
Thread: Half/Full
Size:M6-M20
Surface: Plain,Black,YZP,ZP,HDG
Standard: GB,ANSI,BSW or Customized
MOQ: 1000PCS
Still deciding? Get samples first, Contact US !
