Chipboard screws
Size:M3.5 M4 M5 M6
Surface: Plain,Black,YZP,ZP,HDG
Length:12-125mm
Material: Mild Steel
Drive: Pozi,Philips
Surface: Plain,Black,YZP,ZP,HDG
Length:12-125mm
Material: Mild Steel
Drive: Pozi,Philips
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details

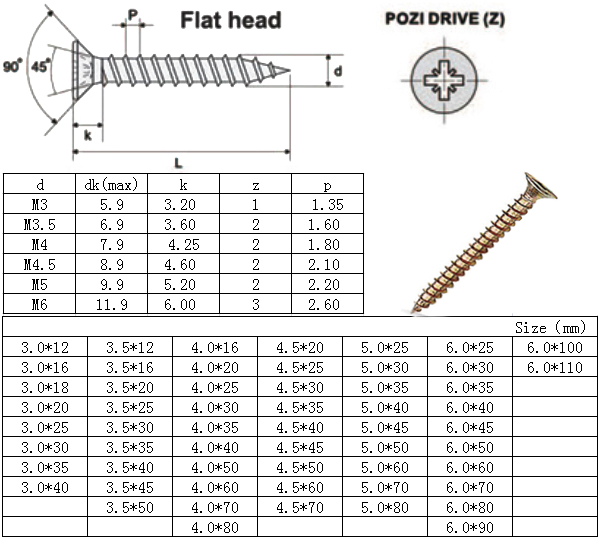

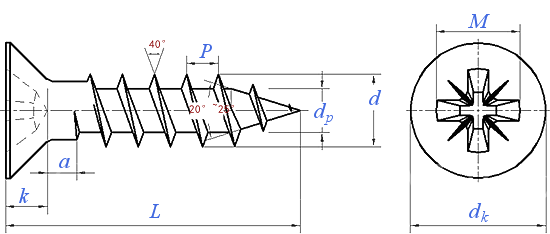

For Nominal Thread Diameter 2.5 3 3.5 4 4.5 5 6 d max 2.5 3 3.5 4 4.5 5 6 min 2.25 2.75 3.2 3.7 4.2 4.7 5.7 P Pitch(±10%) 1.1 1.35 1.6 1.8 2 2.2 2.6 a max 2.1 2.35 2.6 2.8 3 3.2 3.6 dk max=nominal size 5 6 7 8 9 10 12 min 4.7 5.7 6.64 7.64 8.64 9.64 11.57 k 1.4 1.8 2 2.35 2.55 2.85 3.35 dp max=nominal size 1.5 1.9 2.15 2.5 2.7 3 3.7 min 1.1 1.5 1.67 2.02 2.22 2.52 3.22 Socket No. 1 1 2 2 2 2 3 M 2.51 3 4 4.4 4.8 5.3 6.6
Size:M3.5 M4 M5 M6
Surface: Plain,Black,YZP,ZP,HDG
Length:12-125mm
Material: Mild Steel
Drive: Pozi,Philips
Chipboard screws
Size:M3.5 M4 M5 M6
Surface: Plain,Black,YZP,ZP,HDG
Length:12-125mm
Material: Mild Steel
Drive: Pozi,Philips
Surface: Plain,Black,YZP,ZP,HDG
Length:12-125mm
Material: Mild Steel
Drive: Pozi,Philips
MOQ: 1000PCS
Still deciding? Get samples first, Contact US !
