Yellow zinc plated grade 8.8 10.9 hex flange bolt
Grade 4.8 5.8 6.8 8.8 10.9 12.9
Full thread/half thread
Size:M6-M52
Full thread/half thread
Size:M6-M52
Still deciding? Get samples first, Contact US !
View similar products
- Product Description
-
Product details

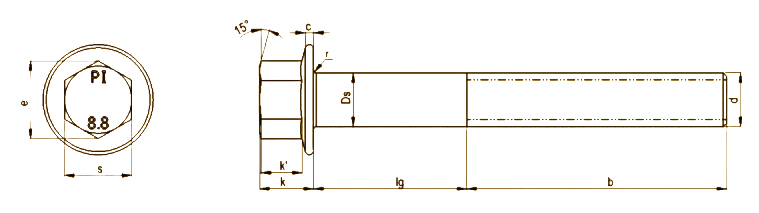

Thread p c Ds e k k' s r Min. Max. Min. Min. Max. Max. Min. Max. M5 0.8 1 5 8.79 2 5.4 8 7.78 0.3 M6 1 1.1 6 11.05 2.5 6.6 10 9.78 0.36 M8 1.25 1.2 8 14.38 3.2 8.1 13 12.73 0.48 M10 1.5 1.5 10 16.64 3.6 9.2 15 14.73 0.6 M12 1.75 1.8 12 20.03 4.6 11.5 18 17.73 0.72 M14 2 2.1 14 23.36 5.1 12.8 21 20.67 0.88 M16 2 2.4 16 26.75 5.8 14.4 24 23.67 0.96 M20 2.5 3 20 32.95 6.8 17.1 30 29.16 1.2 Tensile Strength Size Range Equivalent Standards Property Class Diameter Length PSI N/mm2 Grade Metric Inch Metric Inch IS ISO DIN BS ANSI JIS 60000 to 174000 400 to 1200 4.6 to 12.9 M5 to M20 - 20 mm to 300 mm - 15582 4162 6921 - B18.2.1 B1189 Grade 4.8 5.8 6.8 8.8 10.9 12.9
Full thread/half thread
Size:M6-M52
Yellow zinc plated grade 8.8 10.9 hex flange bolt
Grade 4.8 5.8 6.8 8.8 10.9 12.9
Full thread/half thread
Size:M6-M52
Full thread/half thread
Size:M6-M52
MOQ: 1000PCS
