Shear stud
Length:50-300mm
Surface: Plain
Material: ML15
Standard:DIN BSW ANSI ISO
Still deciding? Get samples first, Contact US !
View similar products
Tag list
- Product Description
-
Product details

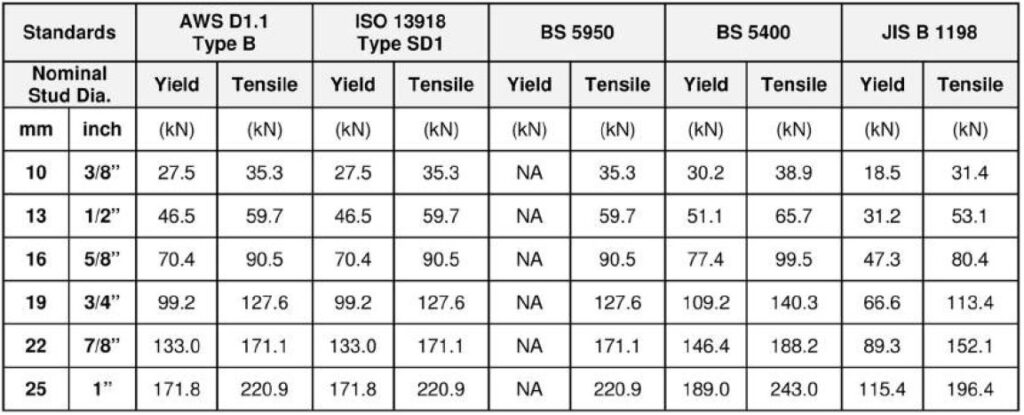

Characteristics Tension Capacity
The following data are presented as guidelines only and are based on minimum steel tensile and yield strength. Appropriate safety factors should be applied based on actual use.

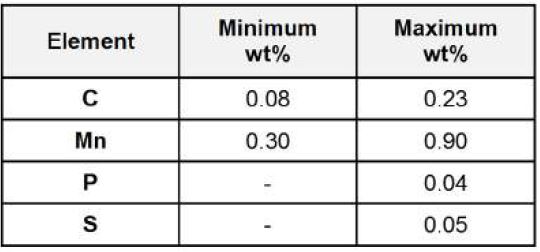

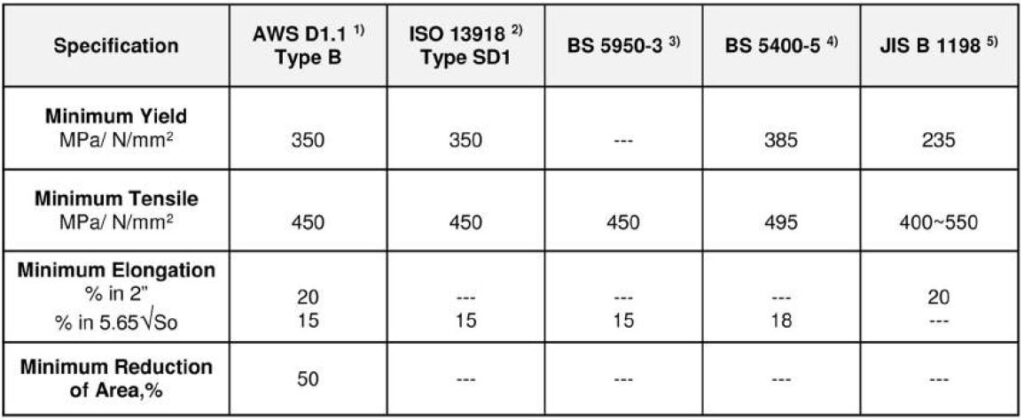

Chemical and Mechanical Properties of Shear Connectors
Size:M13 M16 M19 M22 M25
Length:50-300mm
Surface: Plain
Material: ML15
Standard:DIN BSW ANSI ISO
Shear studs are specifically designed steel elements that are welded onto a steel beam or girder to improve its ability to resist shear forces. They are typically used in composite construction, where a concrete slab is poured over a steel beam to create a composite beam.
The shear studs act as connectors between the steel beam and the concrete slab, transferring shear forces between the two materials. This helps to improve the overall strength and stability of the composite beam, making it more resistant to bending and twisting forces.
Shear studs are typically made from high-strength steel and have a threaded or welded end that is embedded into the concrete slab. They are available in various lengths, with the most common size being around 200mm.
In conclusion, shear studs play a crucial role in enhancing the performance of composite beams by improving their shear resistance. Their installation requires careful welding and positioning to ensure optimal performance and safety in the structure.
Shear stud
Length:50-300mm
Surface: Plain
Material: ML15
Standard:DIN BSW ANSI ISO
MOQ: 1000PCS
Still deciding? Get samples first, Contact US !
